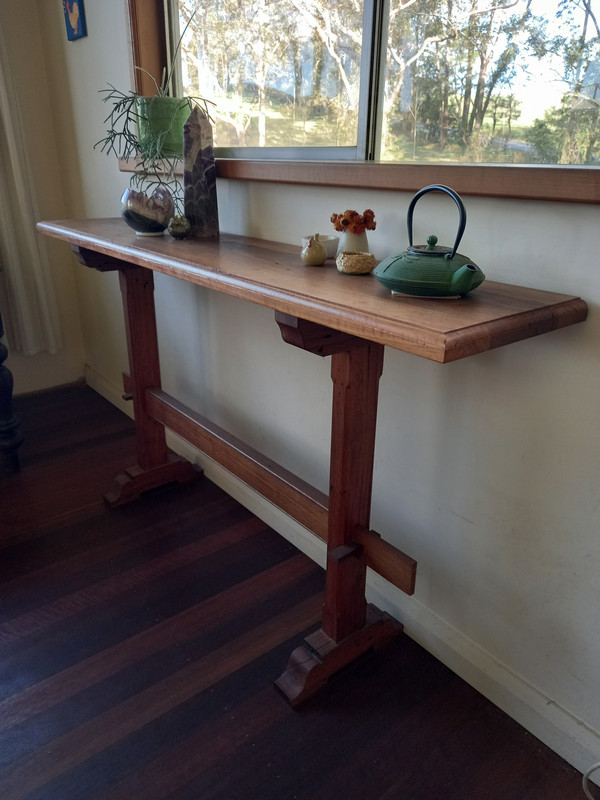

In reply to a request. This humble side table was my first break in project once the shop was up and running. It's made from recycled bearers and joists from a neighbours timber rack. So it's got nail holes and stains all over it.
It is inspired by typical Renaissance construction techniques whereby a long tenononed stretcher holds the two legs together with a horizontal wedge of Jarrah.
The scroll feet and upper brackets again are an Italian Renaissance feature common on Harpsichord stands, side tables and dining tables. Since the Top is quite narrow I drilled pocket holes under the brackets and used carriage bolt's to fix the table top down.
The carriage bolt's were recycled gate hinge bolts. The pocket holes are bored oversize to allow for movement.
The feet and bearers are through wedged mortise and tenon.
The table is now 25 years old. Simple, tough, stable.
I made it in one day to test the machines were running OK.
The mortises were cut with a Muti mortiser..
