Steam power (pics)

Posts

Steam power (pics)

#1

Steam power (pics)

Moses Yoder in White Pigeon, MI

>My in-laws bought a place a little ways out of town a few years ago, and there is a steam show next door that has been going on for a number of years now and I just found it because they live next door. Last year I wandered through the flea market that is there and found a few tools, and it's the same place I was wandering though recently that I found the #4 trammel points in a 1940's stanley box for $12, which is doing quite well for the old tool sahara that I live in. Last year I watched them run this old saw mill with a steam tractor and thought it would be kinda neat. Last fall my FIL mentioned a dead tree in the woods he thought was a walnut, so my brain instantly connected the two. I took the tree down about a month ago, and it turned out to actually be elm instead of walnut, but I have plenty of walnut so that was a nice surprise. There was about 15 feet of trunk before the first fork, and I took a ten foot log off the bottom and then cut a few feet above the crotch for the second log. We set the crotch flat and trimmed one side straight, then set it upright and sliced off 8/4 planks, which if they dry reasonably well will make something nice but I'm not sure what yet. I had all the wood sawn into 8/4 stock and it is stacked and drying now.

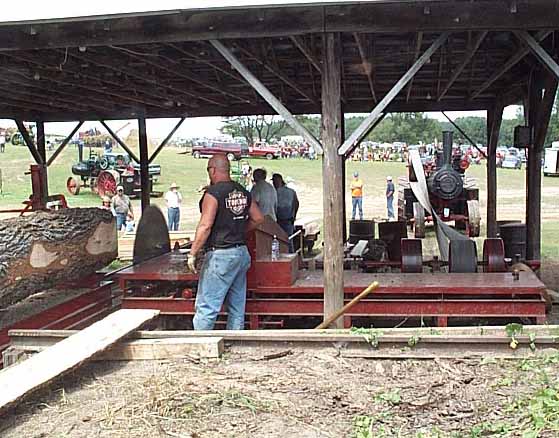

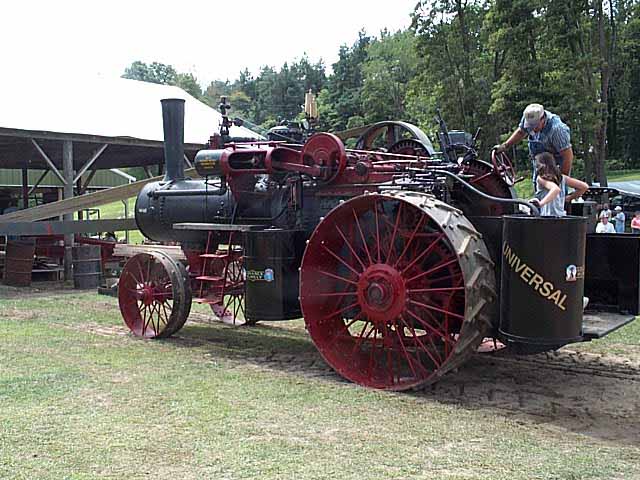

These are 2 pics of the tractor and the saw; it was a neat experience, and I'm thinking if I can get a couple logs like this every year I'll have a nice rotating crop of wood. I ended up becming a member of the St. Joe Valley Old Engine Association, although I think I may be to young to join; it's full of neat people just like the M-WTCA, and was a nice weekend. The big bad bald guy is Roger, the one running the saw, and was really nice to work with.



Re: Steam power (pics)

#2

Nice

Bill Houghton, Sebastopol, CA

>The closest we come to that out here on the Left Coast - at least in this area, and at least as far as I know - is the old make-and-break motors that show up at the apple harvest fair every year. They're cute, but the guys who operate them are mostly pretty happy just to get them running.

Re: Steam power (pics)

#3

Re: Steam power (pics)

Jim in Conowingo

>That's really cool. I'm a real sucker for old machines. How do they move the sled with the log thru the saw? Does that take power of the main shaft somehow as well?

Re: Steam power (pics)

#4

Re: Steam power (pics)

David Miller from Iowa

>Whenever I can, I go to these steam, threshing, and tractor shows, because they usually have decent tool flea markets (as Moses points out). I've never found a plane treasure, but I have scored big with some very rare bit brace attachments, odd hammers, and great drawknives.

Re: Steam power (pics)

#5

Cool!

Tony - Memphis

>We have a craft show every fall in a local park...there are some folks that setup a one cylinder mill and make various types of flower. Its one of those that you have to oil the exposed rocker arm by hand periodically. Really fun to watch. Giant flywheel!

Tony

Re: Steam power (pics)

#6

Re: Steam power

Moses Yoder in White Pigeon, MI

>The blade is fixed solid to the main shaft, and spins whenever the shaft is spinning. The carriage is run off the same shaft, but with loose belts. There are I think two pullies fixed to a lever such that when the lever is pulled up it tightens one belt and moves the carriage forward, and when pushed down tightens a different belt and moves the carriage backwards.

Re: Steam power (pics)

#7

Re: Steam power (pics)

William Haun, Forest City, IA

>I run one of these circular sawmills at Heritage Park of North Iowa. Ours pulls the carriage both in the forward and back directions by the use of a steel cable, a drum, and two pulleys mounted at the ends of the track. The main shaft is connected to this drum via a belt for the forward direction and a wooden block pulley for the return. The belt is loose on the its pulleys and when the operator wants to move the carriage, a lever is pulled back. This tightens the belt and in the end (bunch of connecting chains and pulleys) causes the cable to be wound around the drum. This pulls the carriage down the track. The return is accomplished by pushing the level, which causes another drum to rub against the wooden block pulley. This causes the drum to turn the opposite direction and the carriage returns.

We can use a steam engine, or the pto of a tractor as a power source.

Re: Steam power (pics)

#8

Re: Steam power (pics)

Bill Ward

>We have several annual steam shows not too far from Kansas City. A year or so ago, I caught the "Power of the Past" gathering in Ottawa, KS. Mostly gas/diesel tractors, but there were several steam engines including a large Avery. The had a whole collection of belt powered equipment. I missed the sawmill demo, but caugh the threshing. Tons of those single cylinder gas engines on display.

Old Tool Content: There were a number of junque dealers there. Lots of rust! I did uncover a nice Stanley 42 saw set for $1.

Re: Steam power (pics)

#9

Re: Steam power

Mike Lietzow

>Nice pics Moses. That tractor is neat-o. Do you know what era these tools were being manufactured?

Cheers,

Mike

Re: Steam power (pics)

#10

Big steam engine

Ernie Miller Topeka

>Bill Ward called me last winter and told me this was stopping not far from my office so I went and took a look it sure was neet.



Re: Steam power (pics)

#11

Let's see.....

Dan Donaldson

>Put a PTO on that and hook it to Bill Grumbine's lathe and he probably would be able to turn that big log he had on the back of his truck at the picnic ;-)

Re: Steam power (pics)

#12

That stream engine IS big

Todd O. Cronkhite Native of Maine

>and that train ain't no miniture either!

HAAAAAAAAAAAAAAAAAA HA HA HA

Who loves ya' Ernie, or should we now call you Steam Engine?

Todd O.
