"spice cabinet" progress

Posts

"spice cabinet" progress

#1

"spice cabinet" progress

Bill Tindall, E. TN

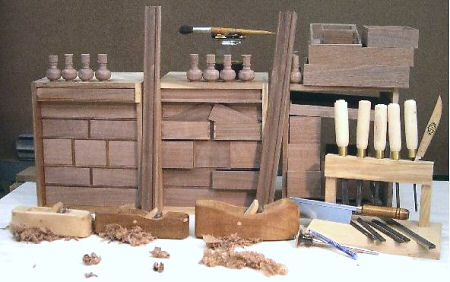

>I have been working on these 3/4 scale spice boxes (jewelry containers) for some time. I now have the drawers all done and finished. they are "phony" half blinds made by glueing some nice resawed quartered curly walnut onto the fronts of through dovetails (33 total drawers). For these dinky drawers the cheap Zona saw worked much better than LN saw. The carving knife was handy for the dovetail clean-up. Marking done with Pilot gel pen or LV gauge. Home made chisles described previously.

The planes are a conventional block (45 degrees), low angle block (35 degrees) and a 50 degree smoother with an exceptionally annoying shape that I need to correct someday.

The top molding is a modified chair rail. I don't like top moldings that stick out from a piece excessively, which is a problem in this case as it has to be 1 3/8 tall to hide secret top drawer. I haven't figured out the bottom molding yet. I know good shape when I see it but am challenged to design a proper shape.

The mop-like brush was good for shellacing inside of drawers. More on finishing in a later post.

The bench top is not as white as it looks. It is off-white masonite and resulted in a 25% improvement in light intensity over my former brown masonite top. I now have a near optimum 200 foot candles on bench.



Re: "spice cabinet" progress

#2

It looks like great progress Bill

Dave Anderson Chester, NH

>I'm interested in what you think the difference is in the time required to make 3 versus just one. This would be particularly interesting if all of the work had or has been done with hand tools. We all know that using power tools for multiples can cut times by as much as 50-75% since most time is in the setup, but I've never done multiples of a hand tool project all at the same time- hence the question.

Re: "spice cabinet" progress

#3

Mark Meier (Ann Arbor, MI)

Re: "spice cabinet" progress

Mark Meier (Ann Arbor, MI)

>I really like the idea of the light colored bench top to improve the lighing situation. When I build my next assembly table I think I'll put off-white formica on top.

Mark

Re: "spice cabinet" progress

#4

Re: "spice cabinet" progress

Jim Shaver Oakville, Ont

>Hi Bill,

Looks like a great project!

Take care,

Jim

Re: "spice cabinet" progress

#5

Re: "spice cabinet" progress

Paul in NJ

>That's a lot of dovetails Bill. You must be getting quite good at them with all that practice. Are those your new CPM chisels in the photo? By the way, I like using the Pilot roller-ball pens but they seem to dry out real quick. Do you store them in any special way?

Paul Dzioba

Re: "spice cabinet" progress

#6

answers to above questions

Bill Tindall, E. TN

>Multiples- I never thought of the point you raise. Since I am doing the design there is economy of scale in the decisions of how big, what shape, etc. It took a while to get the bun foot shape right, but it was then quick to make them.

The drawers just took forever and having to do many actually slowed things down due to boredom factor. I just find doing dovetails tedious. I guess if I was working off already made plans and knew already how to do what is needed to do that there would be little economy of scale- 3 vs 1. But, I have 2 daughters and a wife, so three was the required number, however long it finally takes. I still face learning to make a tombstone door to frame a nice piece of crotch walnut I have been saving for this special occasion.

Pilot pens- I too am having a dry out problem after storeage. I thought I had it solved but the pen that was working fine is not now. If I find a fix I will post. Yes, those are the home- made chisels, including some on the base of the holder yet to be handled.

Re: "spice cabinet" progress

#7

Re: Pilots

William R. Duffield, on the Cohansey

>I have a different problem. I bought a pack of five. I've used one up, emptied it. I know it didn't just dry up, because I had worn most of the label off, with use, and could see that there was no ink left in the reservoir. Then I found a second one where it had hidden under the car seat. The other three have flown the coop, so to speak. I can't find them anywhere.


Re: "spice cabinet" progress

#8

OT: Nee!

Don Thompson, Cutler Ridge, South of Miami FL

>William,

What method do you use to append the HTML script in your messages that displays your mugshot and the .wav file link? Cut-and-paste from a Notepad file on your desktop? (I presume that you are not typing it in every time.)

Re: "spice cabinet" progress

#9

Forget about the pic, You look under the car seat?

Joe Rogers, Northern Virginia

>

Re: "spice cabinet" progress

#10

One thing to remember;-)

Dan Donaldson

>There is a FAQ that discusses how to put pictures in a posting. If you want to put a picture of yourself or something else in every posting, and you are uploading the picture rather than hosting it from your own website, the click on the picture in the posting after the first time you upload it and then use the FAQ method to access that picture rather than using the optional graphics upload. The reason for this is that if you use the optional upload capability, it will be uploading a new picture to the WC server every time you post.

Re: "spice cabinet" progress

#11

Re: One thing to remember;-)

William R. Duffield, on the Cohansey

>In this case, I've put the .wav file on my own website, and the .jpg photo is a reference to my WC mugshots file. I agreee, there is no reason to reupload anything, especially something that ugly, more than once. My new posts do not take up any additional WC server space. Note that I do the same thing when I make a reference to a picture I have posted previously. In fact, I don't think I've ever used the WC optional picture upload capability.

Your reminder is important to those who have not lived with severely limited personal memory space. My memory limitations are currently mostly in my head. I've been programming since '67, back when optimal usage of every bit and every machine cycle could be critical, and I still haven't forgotten those hard-earned lessons.

For an example of how I did these little tricks (or to see anyone else's tricks), most browsers have a feature that shows the HTML source of the displayed web page.


Re: "spice cabinet" progress

#13

Re: One thing to remember;-)

Dan Donaldson

>I knew that yours was from your own web space, but just thought it might be a good idea to remind others that want to post a pic of themselves in postings, but don't have their own server. That is great, but it might not be common knowlege that once it is uploaded the first time, it is available for reference from then on, and does not take up additional server space. No point in uploading the same picture 20 times;-)
