Contents of a working cabinetmaker's toolchest

#1

Contents of a working cabinetmaker's toolchest

Andrew F in Australia

>Hi all,

I had to knock up a quick toolbox/chest because I got sick of having to take 5 items out of my old toolbox to get to the one I needed.

Attached photos are of all the tools I use routinely (at least every three months).

In all honesty, the most used ones are

3" layout square

marking knife

6" multigrips

plane (No6 used for 99% of all work)

screwdriver

6" rule

safety gear

dovetail saw

marking/cutting gauge

I use a sliding table saw for the big cuts, or the tenon saw, depending on how I'm feeling or what time of the day it is (or evening if I'm working late). The other saws are there for a small cut when it's not worth going to the saw and setting up/turning on (or if we have an extensive blackout, as has happened.)

This is, I'd suggest, all that's needed to do most things - I've not included the following because they're powered.

drills

grinder

trimmer/router

Anyway, this is what I get by on day-to-day ... anything else you guys use often that isn't in here?

Cheers,

Andrew

Re: Contents of a working cabinetmaker's toolchest

#2

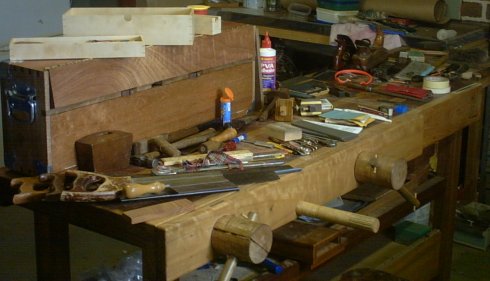

toolbox contents laid out on bench

Andrew F in Australia

>Here is all that is in the box



Re: Contents of a working cabinetmaker's toolchest

#3

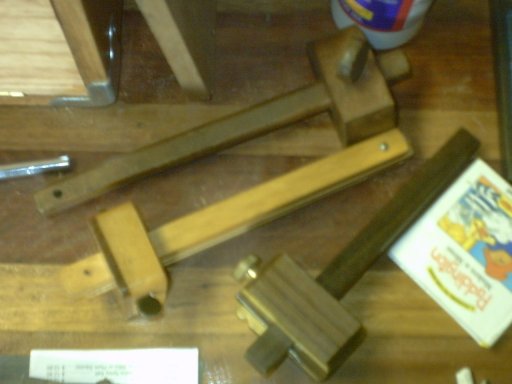

gauges - cutting mortice and marking

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#4

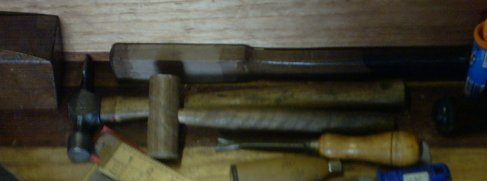

Hammers, mallets, plane hammer, bradawl, tack pull

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#5

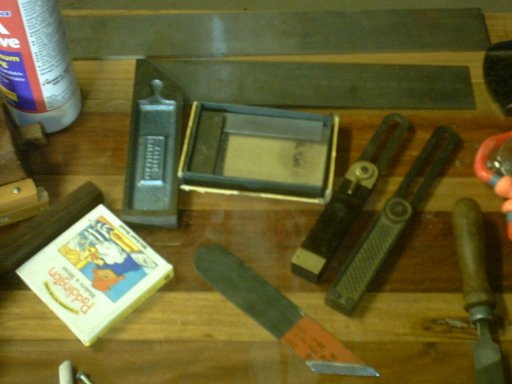

Layout tools - squares, marking knife, sliding bev

Andrew F in Australia

>layout tools - squares, 18 inch straightedge, sliding bevels, marking knife



Re: Contents of a working cabinetmaker's toolchest

#6

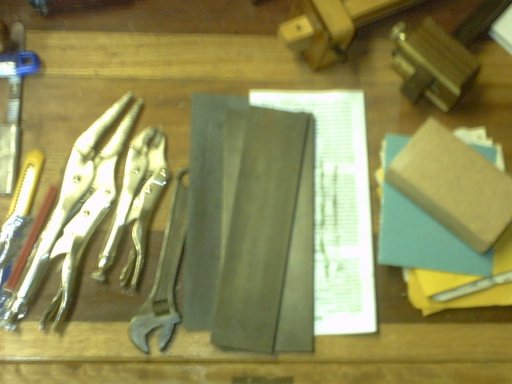

misc tools - pliers, sharpening stones, sandpaper

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#7

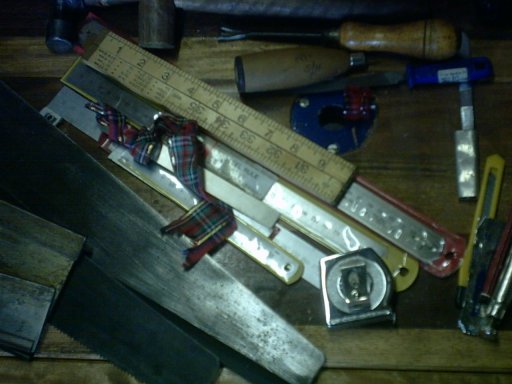

rules

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#8

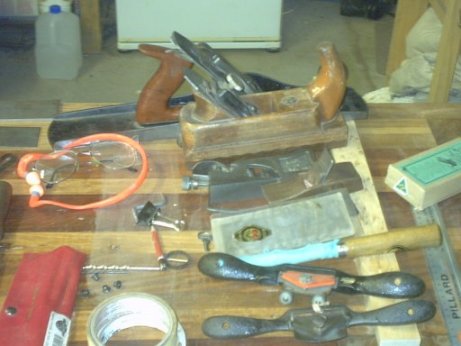

planes, scrapers, etc...

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#9

safety gear, files

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#10

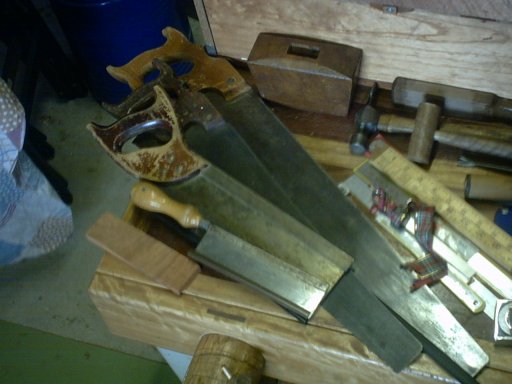

Saws

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#11

wax and buffing compound (used for stropping edge

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#12

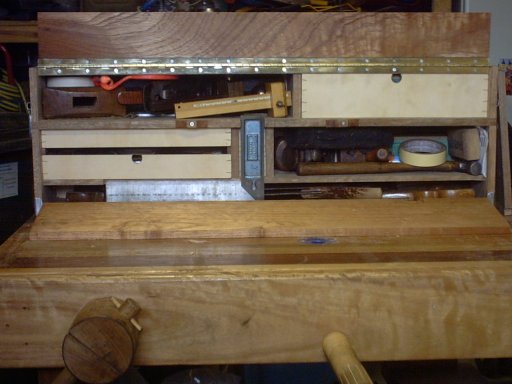

toolbox packed and open

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#13

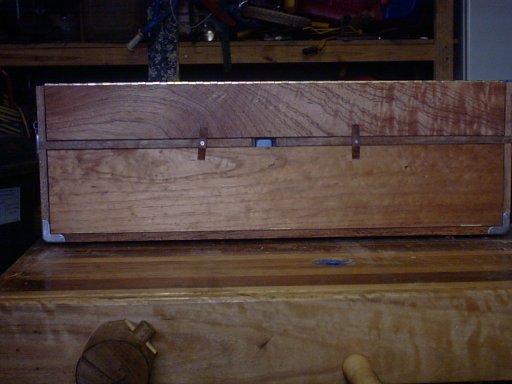

toolbox closed

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#14

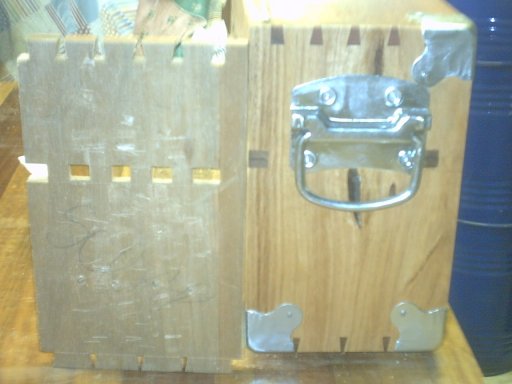

Layout of end of toolbox, along with mistake

Andrew F in Australia

>never layout and cut joinery late at night - I fitted the lid backwards on the scrapped end



Re: Contents of a working cabinetmaker's toolchest

#15

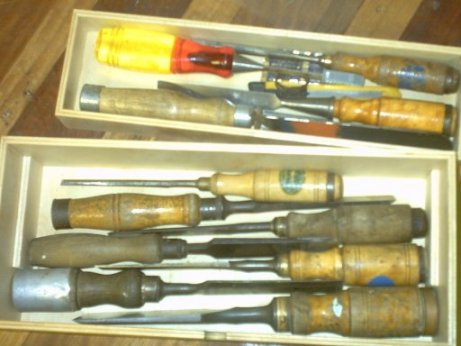

Chisels (also used daily/hourly)

Andrew F in Australia

>Forgot this one on the list



Re: Contents of a working cabinetmaker's toolchest

#16

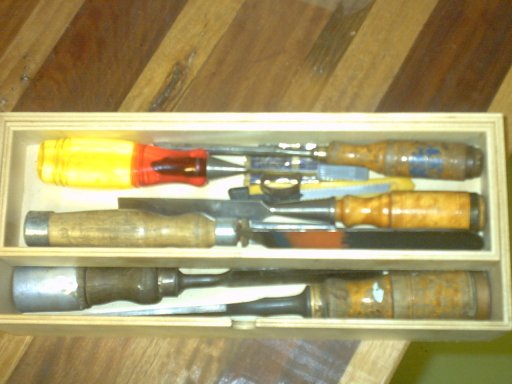

Chisel till - closed up

Andrew F in Australia

>



Re: Contents of a working cabinetmaker's toolchest

#17

Re: Contents of a working cabinetmaker's toolchest

Tim of Dublin

>pencil, chalk, paper.

I need a sketch of some sort with at least the overall dimensions I'm shooting for.

Need the chalk or grease pen or similar so I can mark out the rough cuts on a board.....don't know about you but I seldom can find lumber that is sawn parallel to the grain....and sometimes you want the grain at a certain angle.

Jigsaw - cutting out the rough marked pieces.

drill - powered or hand. Much cabinetry has metal hinges and other hardware.

Ink or chalk lines are helpful too.

Re: Contents of a working cabinetmaker's toolchest

#18

Thanks Tim

Andrew F in Australia

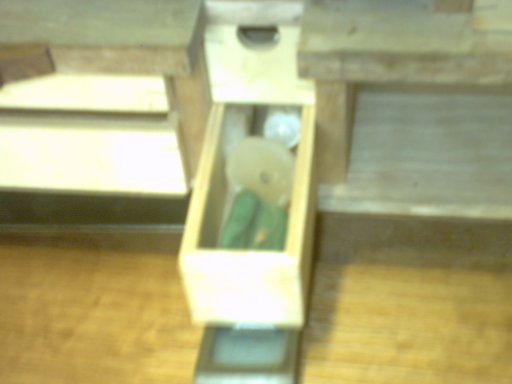

>I've got a drawer full of pencils chalk and a pencil rubber in the toolchest (behind the square).

I agree with what you say there.

Cheers,

Andrew

Re: Contents of a working cabinetmaker's toolchest

#19

Sargent V-B-M Tool Cabinet - 1911

L. Hanson - N. Idaho

>Thought these were interesting - they're tool cabinets sold by Sargent in their 1911 tool catalog, on the Rose Antique Tools web site, shown with suggest content:

Single Door

Double Door

Warning - they are kind of big graphics files...

Leif

Norsewoodsmith.com

Re: Contents of a working cabinetmaker's toolchest

#20

Re: Sargent V-B-M Tool Cabinet - 1911

Bill Houghton, Sebastopol, CA

>Thanks for the pics, Leif. Do you happen to know the tool just to the left of the marking gauge in the double door cabinet? Looks like a chunky little handle with a metal chuck or something on the end - ?

Re: Contents of a working cabinetmaker's toolchest

#21

Re: Sargent V-B-M Tool Cabinet - 1911

L. Hanson - N. Idaho

>"Do you happen to know the tool just to the left of the marking gauge in the double door cabinet?"

Looks to me like a No. 100 Lock Screw Driver

Catalog Page

QUOTE:

_______________________

No. 100, Lock Screw Driver, square shank for 3/16, 5/16, and 3/8 inch hubs, highly finished rosewood handle, polished steel ferrule and burnt black rustless finish on shank. This Driver is 4 inches long ; the shank being 1-9/16 inches up to the knurled portion of the ferrule. This Driver is a convenient tool for the pocket. The shank is held in the ferrule and handle by means of a rivet.

___________________________

UNQUOTE

My best guess, anyway. I would be quite sure that the large majority, if not all, of the tools in the cabinet are examples of Sargent. Would make sense from a marketing perspective.

Re: Contents of a working cabinetmaker's toolchest

#22

Paddington Bear

Todd O. Cronkhite Maine Native in FL. Exile :~(

>Andrew,

Is that the much sought after Paddington Teaches Shop Math book? ;~)

Todd O.

Re: Contents of a working cabinetmaker's toolchest

#23

Ah yes

Bill Houghton, Sebastopol, CA

>and how do we get through a day in the shop without one of those, eh?

Re: Contents of a working cabinetmaker's toolchest

#24

Now I've stopped laughing

Andrew F in Australia

>The real reason was I had to glue the thing back together after my 2yo attacked it.

I came up with a whole other stack of titles.

Let's just stick with Paddington Bear gets a hangover - it's probably one of the least offensive.

At least someone noticed. (I didn't until it was too late)

Cheers,

Andrew
