Hand Tools
Subject:
Re: Shop-built toothing plane help *PIC*Response To:
Shop-built toothing plane help () Dale Stansbery

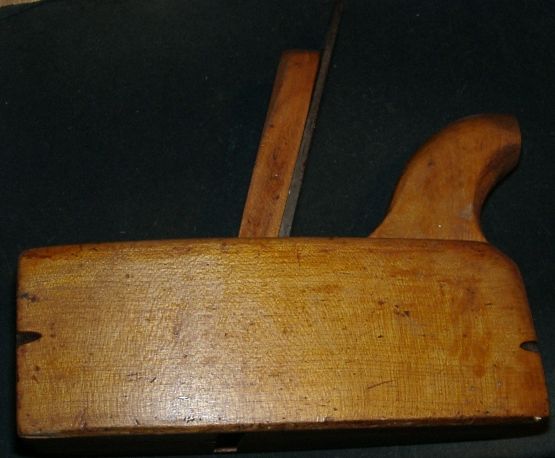

Here's a photo of my Ohio Tool bladed toothing plane. I think the body is original Ohio tool also that had the funky euro style handle retrofitted. It's an obvious retrofit that was inlet nicely, but not smoothed off very well at the back end. You can still see coping saw marks on the back bottom of the handle. There's no makers mark but I think it was removed by inletting the handle. The blade appears to be set at about 75-80 degrees and the serrations are pretty fine. It's probably only good for glue prep.The blade appears to have the original grind so I suspect it's seen very little use.
